STOPKiT®

Online Leak Sealing Emergency Pipeline Repair System (EPRS)

Product Sheet

STOPKiT® is the most efficient repair in the world able to seal a leak online in few minutes.

It stops various types of leak (oil, gas, water …) on pipe diameters from 2″ to 56″ and is also applicable on specific geometries (oval pipe, elbow) and irregularities like welds.

This patented product is an emergency and temporary system and is available under several models (depending on pipe and hole diameter) and for various environments (onshore, offshore and subsea).

Pressure up to 80 bars can be stopped for hole diameter inferior to 10mm (patch size 50x100mm). In case of hole diameter up to 50mm, leaks can be sealed up to 30 bars (patch size 100x100mm). A specific patch (size 50x50mm) has been designed for STOPKiT small diameters (2” and 3”).

The installation can be done without shutting down the line pressure.

USES

  • Emergency and temporary repair for leaking pipe

APPLICATIONS

  • Onshore, Offshore and Subsea
  • Suitable for weld, elbow, oval pipe …
  • Pipe diameters from 2″ to 56″
  • Pipe temperatures from -20°C to +80°C (-4°F to +176°F)
  • Pipe transporting most common fluid and gas

BENEFITS

  • No shutdown required
  • No additional load on pipe (light product)
  • Quick installation
  • Easy to store
  • Shelf life: 5 years

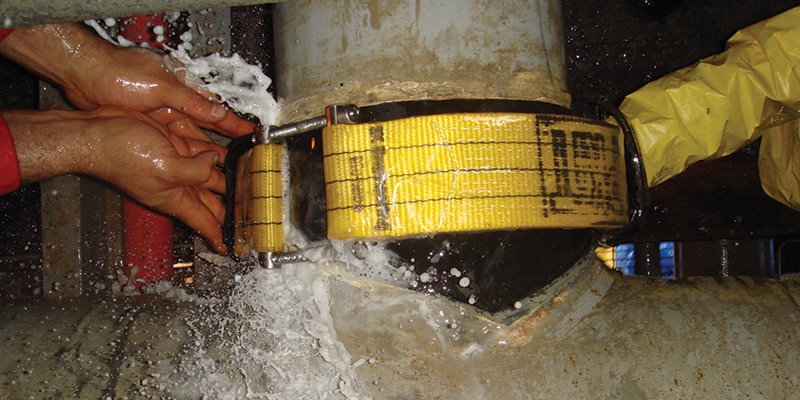

STOPKiT® Concept

The system operates by concentrating all the needed stress in the pipe at the defect location. The hoop stress needed to stop the leak is brought by the technical strap and the screws. The strong fibers of the strap are temperature and stress resistant.
STOPKiT® Concept

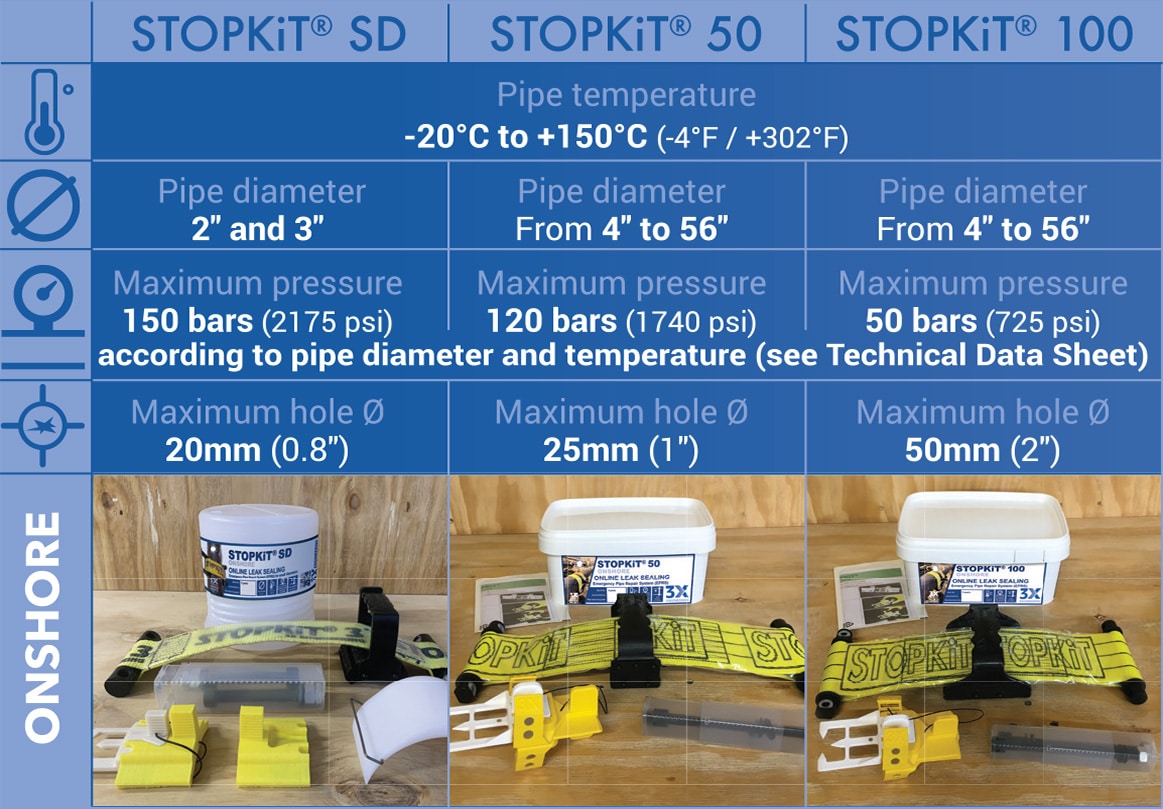

STOPKiT® Range from 2″ to 56″

Specific data for 2″ and 3″ models

ONSHORE ENVIRONMENT

STOPKiT® 50

Max. hole Ø 10mm
Max. pressure 80 bars (1160 psi)

Pipe temperature
-20°C/+80°C
(-4°F/+176°F)

STOPKiT® 100

Max. hole Ø 50mm
Max. pressure 30 bars (435 psi)

Pipe temperature
-20°C/+80°C
(-4°F/+176°F)

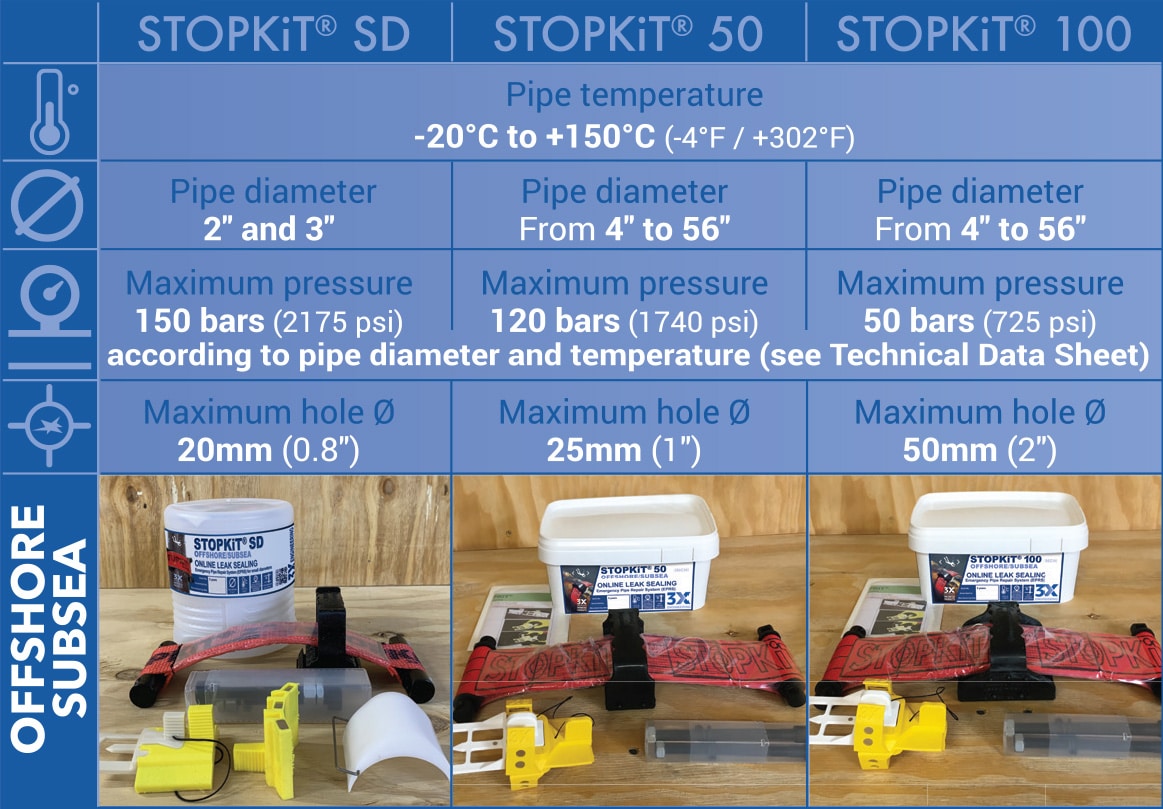

OFFSHORE / SUBSEA ENVIRONMENT

STOPKiT® 50

Max. hole Ø 10mm
Max. pressure 80 bars (1160 psi)

Pipe temperature
+5°C/+80°C
(+41°F/+176°F)

STOPKiT® 100

Max. hole Ø 50mm
Max. pressure 30 bars (435 psi)

Pipe temperature
+5°C/+80°C
(+41°F/+176°F)

STOPKiT® Positioner​

STOPKiT® is easily applicable thanks to the STOPKiT® Positioner tool. This special device allows to center the patch on the leak and prevents slipping during tightening
STOPKiT® Positioner​

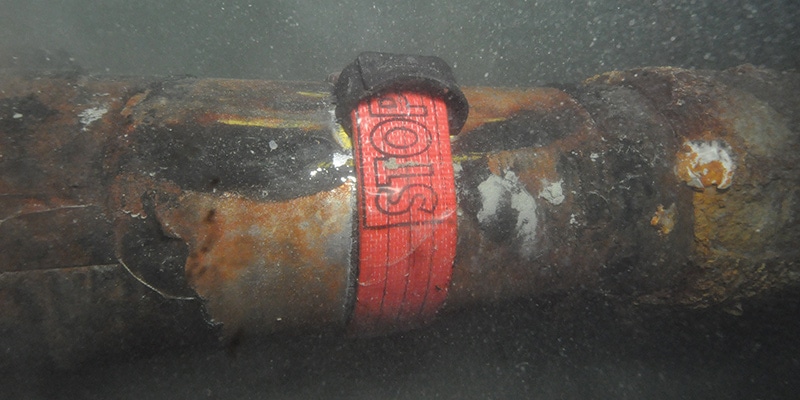

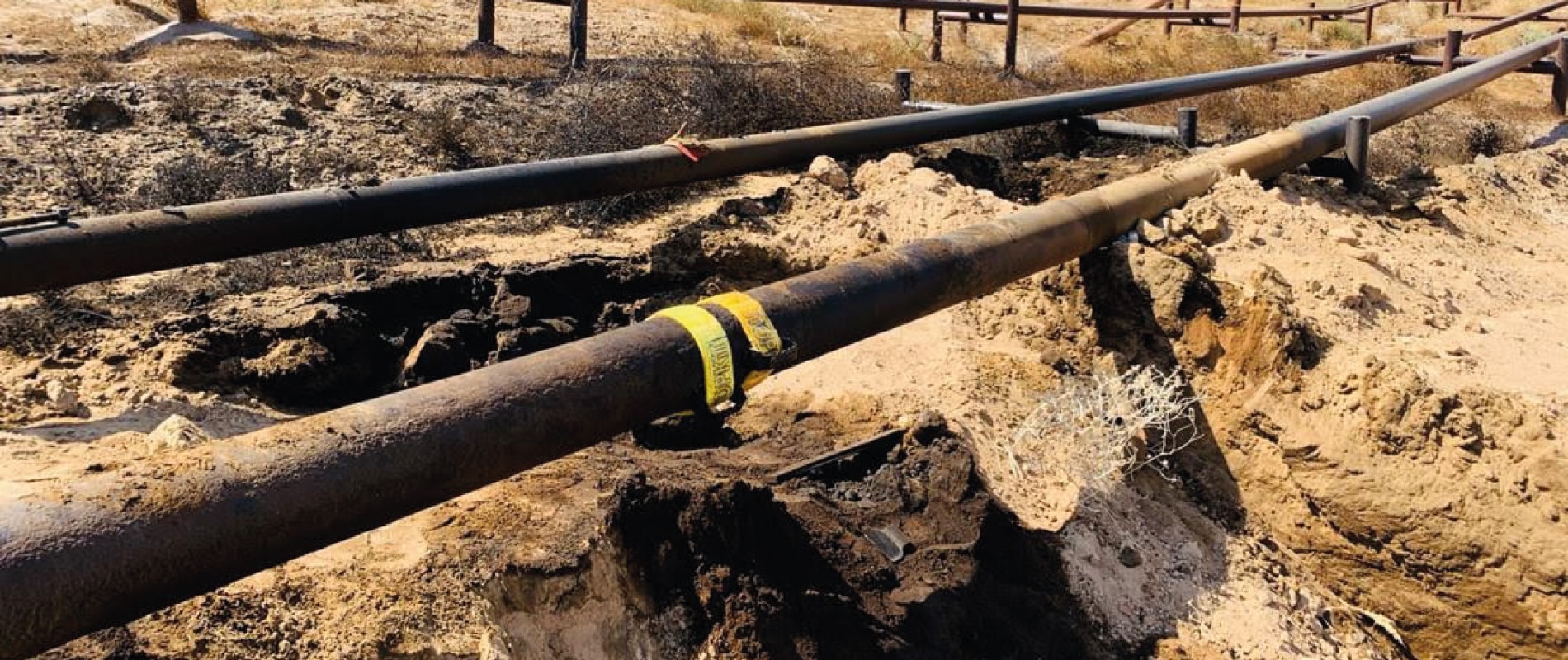

Have a look to these cases studies and discover how STOPKiT® Offshore stopped an on-line leakage located on subsea line:

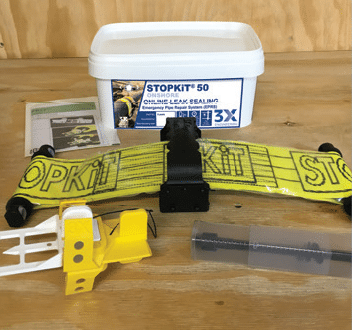

STOPKiT® Onshore

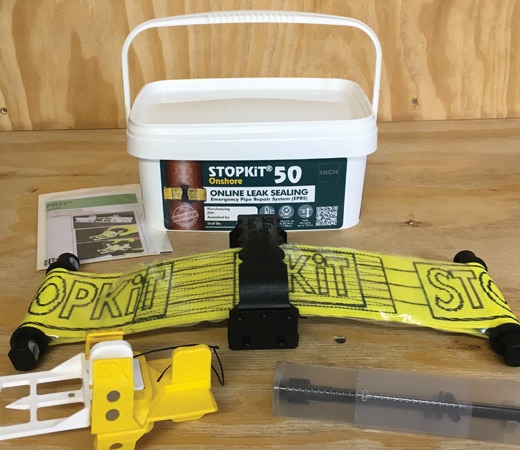

The box includes yellow belt(s), patch (50 x 100mm or 100 x 100mm), stainless steel bars, bolts, screws & STOPKiT® Positioner (the number of belts, stainless steel bars, bolts & screws depends on pipe diameter)
STOPKiT® 50 STOPKiT® 100
Patch size 50 x 100mm 100 x 100mm
Maximum defect size Ø≤ 10mm Ø≤ 50mm
Maximum pressure 80 bars / 1160 psi 30 bars / 435 psi
Use ONSHORE ENVIRONMENT – EMERGENCY REPAIR
Pipe diameter From 2″ to 56″
Pipe temperature -20°C / +80°C (-4°F / +176°F)

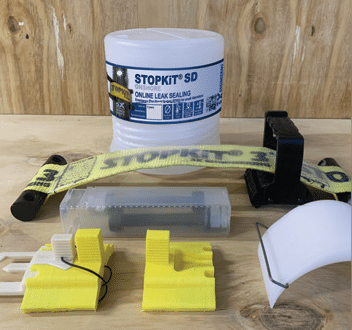

STOPKiT® SD has been designed specifically for small pipe diameters of 2″ and 3″. Pressure up to 80 bars can be stopped for hole diameter up to 20mm (patch size 50x50mm). STOPKiT® SD is available for onshore and offshore/subsea environments.

STOPKiT® Offshore

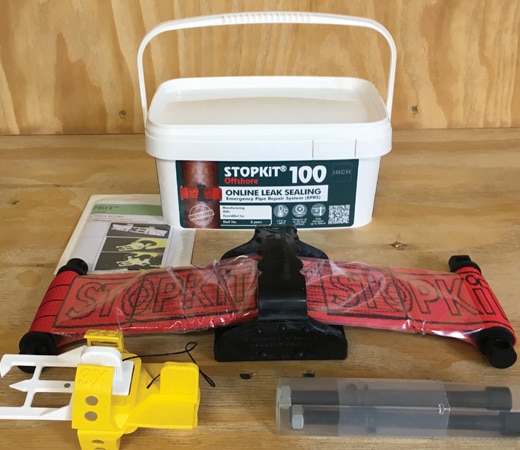

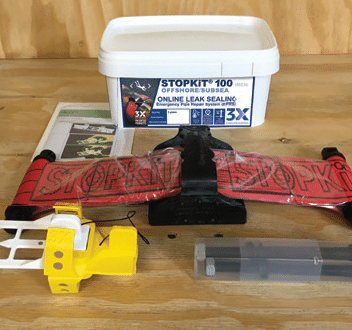

The box includes red belt(s), patch (50 x 100mm or 100 x 100mm), stainless steel bars, bolts, screws & STOPKiT® Positioner (the number of belts, stainless steel bars, bolts & screws depends on pipe diameter)
STOPKiT® 50 STOPKiT® 100
Patch size 50 x 100mm 100 x 100mm
Maximum defect size Ø≤ 10mm Ø≤ 50mm
Maximum pressure 80 bars / 1160 psi 30 bars / 435 psi
Use OFFSHORE ENVIRONMENT / SUBSEA – EMERGENCY REPAIR
Pipe diameter From 2″ to 56″
Pipe temperature +5°C / +80°C (+23°F / +176°F)
STOPKiT® Offshore has been designed specifically for offshore environment such as platforms or subsea conditions. The belt of this model is not only lighter and more flexible but is also very resistant underwater. It will definitely improve the long-term product efficiency.

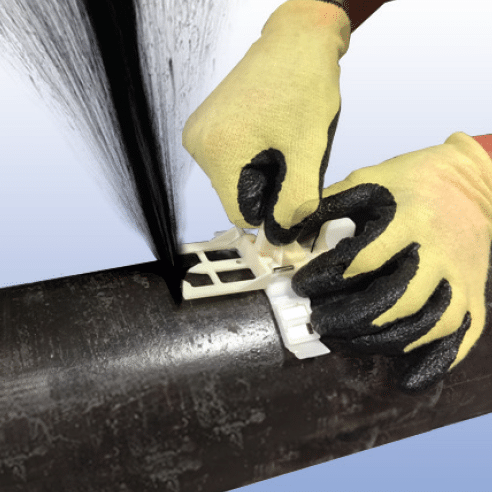

Set-up the 1st part of the positioner​

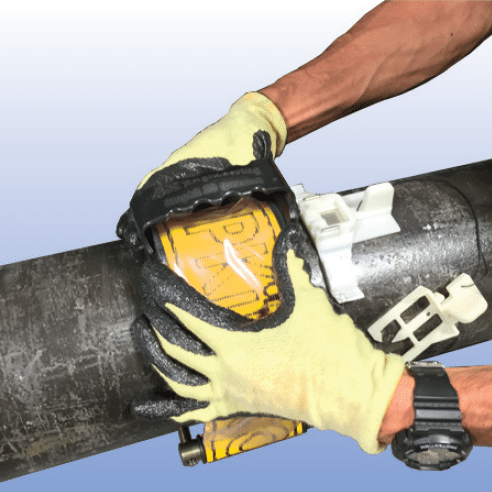

Install the STOPKiT® and slide it over the leak​

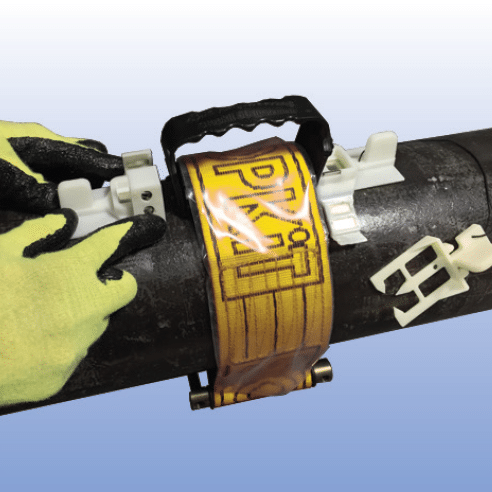

Set-up the 2nd part of the positioner​

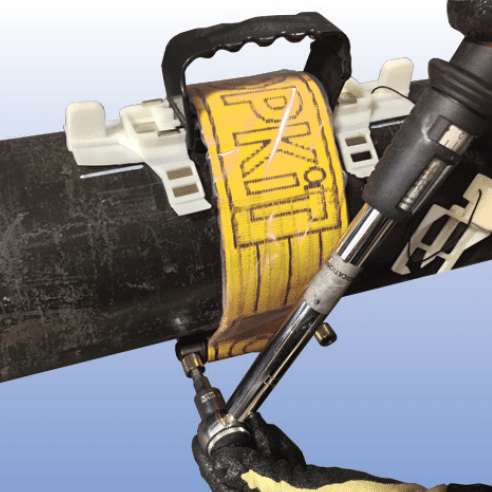

Tighten up to 40 Nm (<40°C) Tighten up to 30 Nm (>40°C)​

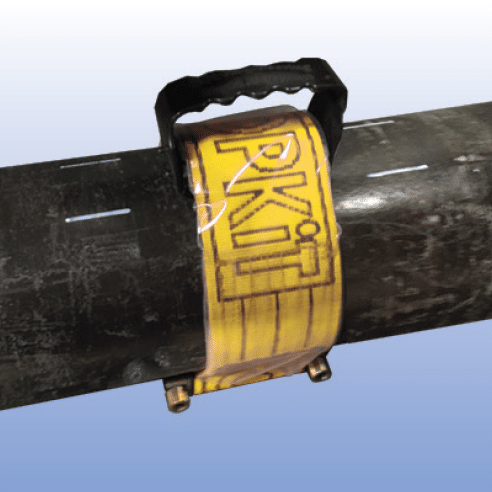

Remove the positioner​

IMPLEMENTATION BY TRAINED AND CERTIFIED APPLICATORS ONLY
