ROLLERKiT®

Pipe & Support Protection Composite Repair for Corrosion Under Support (CUS)

Product Sheet

ROLLERKiT® is a preventive and curative repair system for corrosion under support, to be installed both on support or on pipe.

Depending on the level of corrosion, ROLLERKiT® can be applied directly on pipe for superficial corrosion.

ROLLERKiT® is made of high polymer pads thermo-welded on glass fiber fabric and specific epoxy resin. Pads are designed to support the weight of the pipe according to ASME B31.1. Glass fiber fabric ensures the pads assembly, and applied with the resin on a corroded structure, it will stop the corrosion.

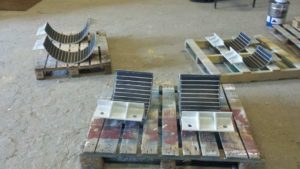

rollerkit-on-pipe-01
rollerkit-on-support-03
rollerkit-on-support-02

ROLLERKiT® on pipe

ROLLERKiT® on support

rollerkit-on-pipe-04
rollerkit-on-support-05
rollerkit-on-support-06

USES

  • Protect the pipe at support area
  • Prevent:
    • Corrosion
    • Abrasion
    • Humidity
    • Galvanic effects
    • Friction

APPLICATIONS

  • Onshore, Offshore and Subsea
  • Old and new installations
  • All pipe supports (steel, concrete …)
  • All design supports
  • Pipe diameters from 4″ to 56″
  • Pipe temperature from -30°C to +150°C (-22°F to +302°F)

BENEFITS

  • Long-term service lifetime
  • Non-metallic solution
  • Pipe integrity preserved
  • Fast & easy installation
  • Dual use: preventive & curative system

ROLLERKiT® Range

Model Pipe O.D. (inch) Application Temperatures Resin Length/Width/Thickness (mm)
ROL-28 4″ to 28″ Onshore & Offshore topside -30°C/+150°C (-22°F/+302°F) F3X8 3000 x 160 x 8
ROL-56 30″ to 56″ Onshore & Offshore topside -30°C/+150°C (-22°F/+302°F) F3X8 3000 x 300 x 12

ROLLERKiT® Components

A single kit allows up to 28 repairs according to pipe diameter

Roll of 86 pads
Resin cartridges
Kit of accessories including: spatula, squeegee, mixing plate, bubble level systems and belts

Have a look to this case study and discover how ROLLERKiT® protected several pipe supports against corrosion under support (CUS):

Surface preparation Sa2½ / St3 and roughness Rz > 60µm​
ROLLERKiT® preparation​
3X epoxy resin application on ROLLERKiT®​
ROLLERKiT® cold welded on the pipe​
ROLLERKiT® installed​

IMPLEMENTATION BY TRAINED AND CERTIFIED APPLICATORS ONLY
